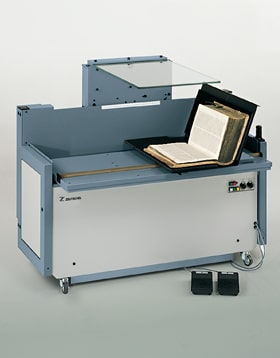

OT 90

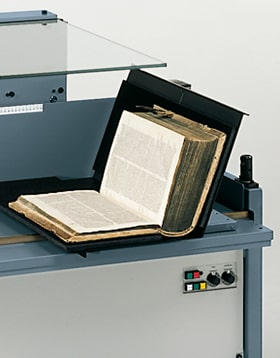

Special Book Cradle for very valuable and old books.

Product advantages

  • Copyboard system with book cradle for old, valuable books, which can be opened between 90° and 180°
  • simple capture even deep into the book curve possible
  • the book is gently held by placing into a book holder which slides sideways for single page capture of books
  • absolute gentle handling of the books
  • continuously adjustable contact pressure
  • sufficient leg room for fast and comfortable operation using foot pedal
  • automatic lowering after capture
Max. book size, opened 420 x 600 mm
Max. book weight 20 kg
Max. book thickness 200 mm
Working level 800 mm
Power supply 230 V, 50/60 Hz, 150W,
other voltages on request
Width x Depth x Height 1180 x 700 x 800 mm
