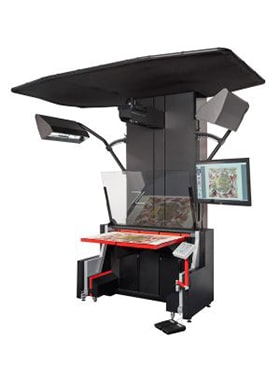

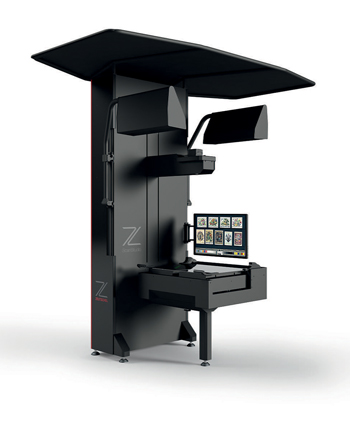

The Zeutschel ScanStudio combines the best of two worlds: the world of studio photography with the world of professional scanners.
Central components are the camera base with digital backs and interchangeable lenses as well as the ErgoLED lighting with flexible light guidance. The perfect interplay of camera system and lighting results in exceptional image quality that exceeds the specifications of established standards and guidelines for digitization (ISO 19264-1, Metamorfoze and FADGI).
Productive, ergonomic and easy working go hand in hand with the Zeutschel ScanStudio. This is ensured by the “OmniScan” capture software, various automatic functions and capture systems for a wide range of originals – from stamps and coins to slides, glass negatives, books and large format originals.
| SENSOR | |
| Sensors | 100 MP / 150 MP |
| Technology | CMOS |
| Sensor format | medium format 4,5 x 6 cm |
| Data depth | 16 bit |
| Dyn range in f-stops | 15 |
| Dyn range in opt Density | 4,5 |
| max opt. Resolution | 100 MP up to 9.000 dpi, 150 MP up to 10.000 dpi |
| CAMERA TYPE | |
| Camera type | Zeutschel ScanStudio Camera |
| Shutter | rotary shutter MTBF > 3 Mio |
| Shutter | 1/50 – 1 sec.; ∞ |
| Lens range | 60-240 mm 70 mm for format A2-A1 100 mm for format A7-A2 macro lens 120 mm for format 24 x 36 mm – 4 x 5″ at 100 and 150 MP |
| Lens detection | optical, automatic |
| REPROSTAND | |
| Dimensions | height 2400 mm x depth 800 mm x width 1200 mm |
| Working height | 700-900mm* pre adjustable |
| Autofocus | yes |
| environmental light contol | glare and stray light control |
| COPYBOARD SYSTEMS | |

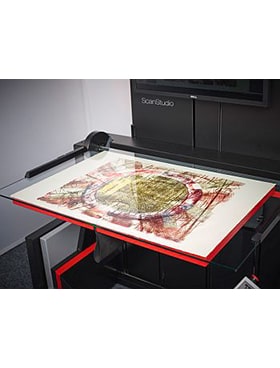

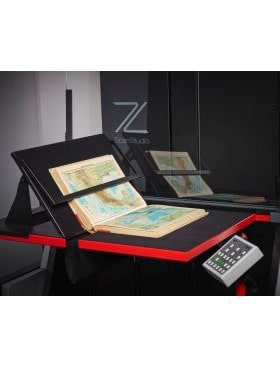

| Advanced Plus Cradle | up to A2+ Size, 15 cm under glass, automatic, pressure controlled |
| Vacuum table | adjustbale format zones up to A2+ |
| Transmissive Light source | max. format up to A2, stand alone or with Advanced Plus cradle. Adjustable illumination strength, adjustable light spectrum |

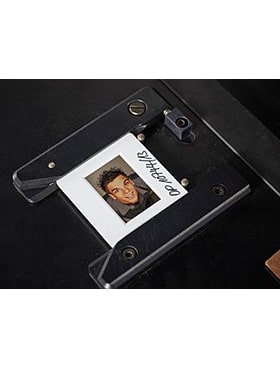

| Film Carrier | for film formats 35 mm up to 8×10“ |
| Glas negative carrier | with 4-way masking |
| A1 Extension Kit | for OT 180 H35; OT180 H50, OT 90 book cadle |
| ILLUMINATION | |
| LED | full spectral LED |
| illuminance | adjustable 500-4500 lx |
| ErgoLED | ergonomic design, non dazzling, soft dimm automatic |
| PERFORMANCE | |
| Scanning Time | 50 ms (typical) |
| Cycle time | 3.4-6 sec (typical values) |
| STANDARDS | |
| ISO 19264 | Quality level > A |
| FADGI | Quality level > 4 Star **** |
| Metamorfoze | Quality level > Full Metamorfoze |
| ELECTRICAL & CONFORMITIES | |
| primary power | 110-240 V, 50/60 HZ, 480 VA |
| Electrical Safety | 60950-3; IEC 62368-1:2014 |
| EMC | EN55022; EN55024; EN61000-3-2; EN61000-3-3; US,CAN: FCC, Part 15 class B, ICES-003 Class B |
| Lamp System | According to EN 62471 „Photobiological safety of lamps and lamp systems“ |
| SOFTWARE | |
| Operating system | WIN 10 / 64 Bit |
| Software | Omniscan 12.12 |
| Color management | according to ICC |
| Book curve correction | optional |
