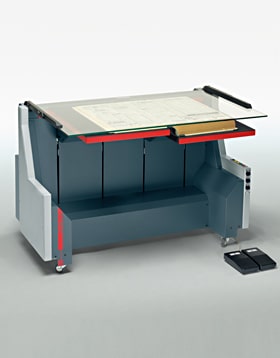

OT 180 H 35 XL

Motorised book cradle with self-opening glass plate.

Product advantages

  • copyboard system with book cradle for careful handling of books
  • self-opening glass plate with adjustable opening angle, adjustable up to 110°
  • sufficient leg room for comfortable and economically correct working position
  • 2 foot pedal for comfortable opening and closing of the glass plate and for raising and lowering the book cradle
  • ergonomic positioning of the control panel (swivel arm)
  • constant contact pressure continuously adjustable, independent of the book weight
  • sliding, self-balancing book support plates
  • easy turning of large pages, limitation for lowering for small books
  • semi-automatic working
  • parallel application and lowering of the books to avoid damage to the sides when opening the glass plate
  • automatic lowering after capture
  • thanks to open sides, the original document can be larger than the scanning surface
Max. book size 1025 x 610 mm
(special model: 1025 x 700 mm)
Max. book weight 40 kg
Max. book thicknes 350 mm
Working level 800 mm
Electr. connection: 230V, 50/60 Hz, 500 W
Dimensions 1180 (B) x 780 (T) x 800 (H) mm
