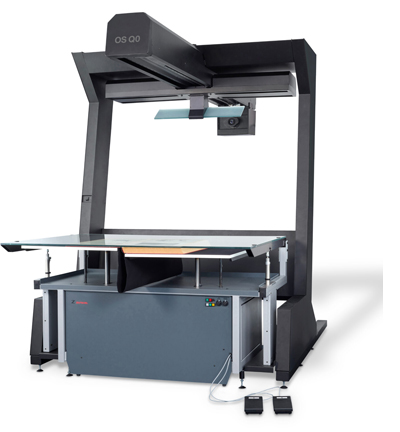

The OS Q0 overhead scanner meets the highest demands for image quality, process efficiency and productivity.
The unique image quality of the OS Q0 is based on the perfect interaction of particularly high-quality technical components.
The camera is characterised by a high dynamic range and the reproduction of even the finest gradations. The result: sharp, low-noise and high-contrast images that faithfully reproduce even the finest details. A special light guide of the LED illumination system, with a constant angle, enables the OS Q0 to reproduce even difficult originals without reflections or shadows. Reflections on glossy surfaces or shadows in the book fold are optically corrected. A CRI value of over 97 in combination with optimally matched camera and lighting components makes excellent colour reproduction possible.
Thus, the image quality of the OS Q0 meets the highest levels of current standards and guidelines for image quality.
The OS Q0 sets the benchmark for high scanning productivity. The OS Q scanner series achieves the highest efficiency in the scanning process through perfect interaction with the proven Zeutschel acquisition systems. Functions such as self-opening glass plates, sliding, self-balancing book support plates and automatic scanning ensure maximum productivity.
The most important functions and product advantages:
| Camera sensor | RGB line sensor (3-channel, CMOS technology) |
| Resolution | MeanMTF10 at 600 ppi: 6,3 lp/mm (with max. zom-in up to 12 lp/mm) |
| Camera system | wear-free mechanical shutter, variable exposure time, electronically adjustable shutter; automatic white and black balance, variable depth of focus |
| Max. original size | > DIN A0, depending on book cradle |
| Max. book thickness | with book cradle OT 180 H A0 – 220 mm with book cradle OT 180 H 35 XL700 – 350 mm with book cradle OT 180 H 50 XL – 500 mm |
| Scan mode | c96 bit color |
| Scanning speed | (from start to end of scanning process) in A0 200 ppi – 5 sec. 400 ppi – 7 sec. 600 ppi – 10 sec. |
| Scanner interface | Camera Link |
| Zoom (optional) | A0 – A2 |
| Electrical data/safety | |
| Voltage | 110 – 240 V |
| Frequency | 50 – 60 Hz |
| Max. consumption | 440 W |
| Safety inspections /authorizations | – Authorization in accordance with the IEC agreement (international authorization for the safety of IT products – includes EMC, electrical safety, device safety for CE, UL, ETL, CSA) – LEDs tested in accordance with: IEC 62471:2006 “Photobiological safety of lamps and lamp systems” |
| Dimensions | |
| Width | 1730 mm / 68.11″ |
| Depth | 3000 mm (scanner including copy board system) / 118.11″ |
| Height | 2200 mm / 86.61″ |
| Copy board systems | A0: OT 180 H A0, AT 0, Vacuum table A0 A1: OT 180 H50 XL, OT 180 H 35 XL700, OT 180 H, OT 180, AT 1, OT 90, Vacuum table |
| Accessories for copy board systems | Kit 90°, book holder 110° – 140° |
| Recommended working conditions | |
| Temperature range | 19 – 35° C |
| Relative air humidity, non condensing | 80% |
| Operating System | Windows 10 (64 Bit) – from OS 12.14 Windows 11 |
| Scanning software | min. OmniScan OS 12.2 (64 bit) |
