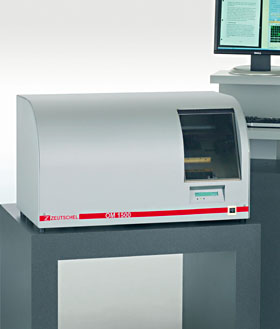

| Description | High-performance filmscanner for microfiche and jackets with automatic loading system |
| Maximum scan resolution | 100 dpi - 600 dpi @ 24X; 100 dpi - 600 dpi @ 48X; 100 dpi - 400 dpi for 35 mm, 24X |
| CDD camera | 8,152 Pixel linear array |
| Scan mode | 12-bit grayscales and b&w |
| Scan speed | Variable depending on fiche and jacket format, up to 200 images per minute 24 x /200 dpi – up to 150 images per minute 42 x /200 dpi – up to 150 images per minute 48 x /200 dpi – up to 200 images per minute |
| Fiche formats | Supports all standard aperture card and fiche types including standard or long jackets: COM, AB Dick and Microx; images can be 16 mm or 35 mm, positive or negative; Diazo, Silver, Vesicular duplicates; cine or comic mode |
| Electronic controls | Continuous automatic scanning or interactive selection of individual images or automatic capture of entire fiche row as an individual image; Real-time automatic pre-scan; automatic microfiche title scan; Task setup by job or saved in setup file for all parameters for future applications |
| Viewing and browsing | Full or partial screen in real-time or by thumbnail emulating fiche layout. Real-time dual view of bi-tonal and grayscale images. |
| File formats | tiff, jpeg, jpeg2000, pdf, Multipage-pdf, pdfA Simultaneous output of grayscale and bi-tonal formats; output to single/multi-page, bi-tonal TIFF (G3, G4) and JPEG |
| Image output | (For Quantum-Software see separate brochure) 8-bit grayscale with GAMMA-correction and automatic adjustment of threshold |
| Operating system | Windows 7 and Windows 10 (64 bit only) utilizing Quantum Software, WIN 10 PRO (64 bit), further alternatives on request |
| PC specification | Quality DELL Workstation (Current Specs) |
| Power requirements | 115/240 V, 50/60 HZ AC, 800/W |
| Dimensions | (w x d x h) 838 mm x 457 mm x 483 mm (33 inch x 18 inch x 19 inch) |
| Weight | approx. 59 kg |
