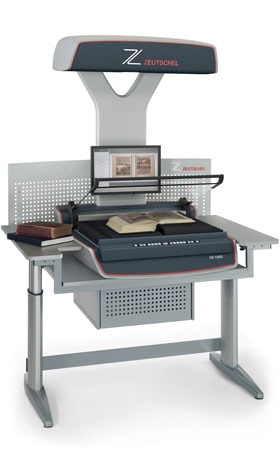

| Description | overhead tabletop scanner for books, newspapers and large-format documents (certificates, drawings, maps) |
| Scan area | 622 x 460 mm (> DIN A2) |
| Scan mode | Color; 4 channels, RGB- Color and Grey in total 43200 Pixel |
| True color processing | 42 bit color | output 24 bit color, 14 bit gray scale | output 8 bit gray scale, 1 bit b/w | output 1 bit b&w |
| Maximum resolution | 600 ppi |
| Scan speed | 3.8 sec /400 ppi |
| Auto focus | approx. 50 mm |
| User software | Omniscan 12 / 64 bit, with multi-thread function (optional) |

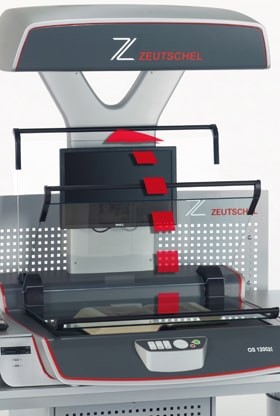

| Book holder | motorized book support plates, self-opening glass plate with adjustable opening angle, adjustable up to 90°. Intelligent and increased control panel with programmable keys |
| Working Mode | automatic / manual |
| Maximum book thickness | 150 mm with glass plate, 200 m without glass plate |
| Scanner interface | Gig E |
| Data display | all the standard image formats, for example, TIFF uncompressed, TIFF G4, JPEG, JP2, Multipage TIFF, PDF, Multipage PDF, BMP, PNG, GIF, PCX |
| Operating System | Windows 7, 8.1 and 10 - alternatives on request |
| Accessories (optional) | PC, monitor, lockable scanner table, different bookends |
| Dimensions | (w x d x h) 955 x 880 x 1362 mm |
| Work space | (w x d) 700 x 720 mm |
| Weight | approx. 90 kg |
| Power Requirement | 230 V, 50/60 Hz, 1.1 A, other voltages on request |
