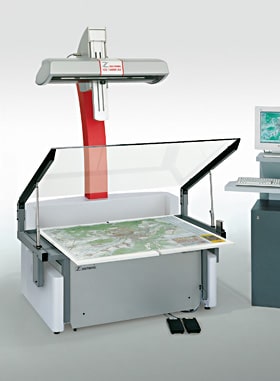

OS 14000 A0 / OS 14000 A0 LS

The A0 high end scanner for maximum performance and perfect images.

Product advantages

  • Scan resolution 400 ppi - 6.3 lp/mm
  • fastest scan speed
  • Perfect Book - 3D scan technology for perfect book curve correction
  • parallel scanning and saving process due to 64 bit technology and multi-threading
  • scanning in both directions
  • high productivity due to ROI-scan feature (limitation of scan area)
  • color reproduction is true to the original
  • no UV/IR radiation
  • no reflections with high gloss originals
  • ergonomic working with and without glass plate
Specifications Description book-/overhead scanner, universal stand unit with easy roll-in, roll-out interchange document table system
Size of originals 1240 x 870 mm (> DIN A0)
49 inch x 34 inch (> E-size)
Scanner tables choice of easy roll-in/out scanner tables, book cradle OT 180 H A0 with self-opening glass plate, book cradles A1 with Kit 90° and book holder for ancient books, backlight table, top light table
(optional with glass plate, newspaper table, vacuum table – see separate brochure OT)
Scan head with highest contrast quality (6.3 lp/mm), high precision scan lens, without distortion, field of depth approx. 50 mm / 2 inches
Scan mode 36 bit color / output 24 bit color
12 bit gray / output 8 bit gray
1 bit b&w / output 1 bit b&w
Maximum resolution 600 ppi

Scan speed
(color, A0-/E-size)
OS 14000 A0
OS 14000 A0 LS
200 ppi 4.8 s 10 s
300 ppi 7.2 s 14 s
400 ppi 9.6 s 20 s
Scanner interface Dual Firewire
Perfect Book (optional) 3D scan technology for perfect book curve correction
Data display all standard formats, e.g. TIFF uncompressed, TIFF G4, JPEG, JP2, Multipage TIFF, PDF, BMP, PCS, PNG, PCX
User software software OS 12, 64 bit, multithreading for high productivity
Image enhancement software (optional) Image enhancement software (optional): integrated color management, contrast improvement, image rotation, despeckle, deskewing, cropping, masking, b&w scanning with dynamic threshold, etc.
Operating System Windows 7, 8.1 and 10 - alternatives on request
Power requirement 110 - 230 V, 50/60 Hz, 1.1 A – without book cradle (for book cradle see separate brochure)
Dimensions OS 14000 incl. OT 180
(w x d x h) 1532 mm x 1751 mm x 2616 mm
(w x d x h) 60 inch x 69 inch x 103 inch
Accessories PC, monitor, workstation
