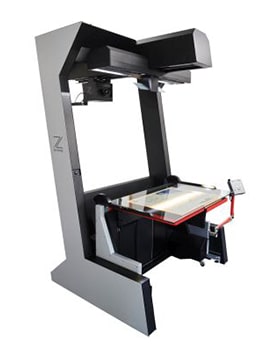

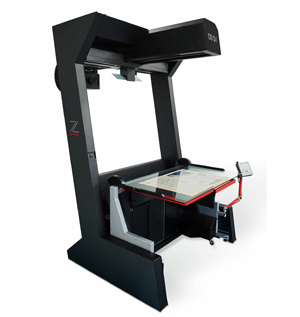

The OS Q1 overhead scanner meets the highest demands for image quality, process efficiency and productivity.
The unique image quality of the OS Q1 is based on the perfect interaction of particularly high-quality technical components.
The camera is characterised by a high dynamic range and the reproduction of even the finest gradations. The result: sharp, low-noise and high-contrast images that faithfully reproduce even the finest details. A special light guide of the LED illumination system, with a constant angle, enables the OS Q1 to reproduce even difficult originals without reflections or shadows. Reflections on glossy surfaces or shadows in the book fold are optically corrected. A CRI value of over 97 in conjunction with optimally matched camera and lighting components makes excellent colour reproduction possible.
Thus, the image quality of the OS Q1 meets the highest levels of current standards and guidelines for image quality.

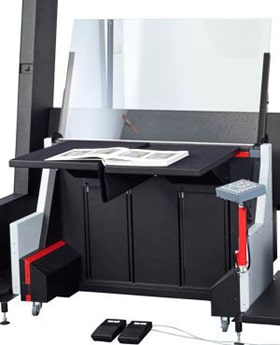

The OS Q1 sets the benchmark for high scanning productivity. The OS Q scanner series achieves maximum efficiency in the scanning process through perfect interaction with Zeutschel’s proven imaging systems. Functions such as self-opening glass plates, sliding, self-balancing book support plates and an automatic scanning system ensure maximum productivity.
The most important functions and product advantages:
3-channel RGB line sensor (CMOS technology). | Resolution up to 600 ppi. | Internal image processing with 96 bit depth. | Data output in 48-bit/24-bit colour and 16-bit/8-bit grey. | True RGB capture on each pixel (no colour interpolation).
| Camera Sensor | RGB line sensor (3-channel, CMOS technology) |
| Resolution | MeanMTF10 at 600 ppi: 9 LP/mm (with max. zoom-in up to 12 LP/mm) |
| Recording system | wear-free mechanical shutter, variable exposure time, electronically adjustable shutter; automatic white and black balance, variable depth of focus |
| Max. original size | >DIN A1, depending on book cradle |
| Max. book thickness | with book cradle OT 180 H 35 XL700 – 350 mm with book cradle OT 180 H 50 XL – 500 mm |
| Scan unit | CMOS RGB sensor |
| Scan mode | 96 bit color |
| Scanning Speed | (from start to end of scanning process) in A1 200 ppi – 3.5 sec. 400 ppi – 5.9 sec. 600 ppi – 7.6 sec. |
| Scanner interface | Camera Link |
| Zoom | A1 – A2 |
| Resolution | 100 – 600 ppi |
| Electrical data/safety | |
| Voltage | 110 – 240 V |
| Frequency | 50 – 60 Hz |
| Max. Consumption |
440 W |
| Safety inspections / authorizations |
– Authorization in accordance with the IEC agreement (international authorization for the safety of IT products – includes EMC, electrical safety, device safety for CE, UL, ETL, CSA) – LEDs tested in accordance with: IEC 62471:2006 “Photobiological safety of lamps and lamp systems” |
| Dimensions | |
| Width | 1370 mm / 53.93″ |
| Depth | scanner including copy board system – 2200 mm / 78.74″ |
| Height | 2144 mm / 84.40″ |
| Copy board system | OT 180 H35 XL700, OT 180 H50 XL, OT 180 H 35 XL700, OT 180 H, OT 180, AT 1, Vacuum Table |
| Accessories for copy board systems |
Kit 90°, book holder 110° – 140° |
| Recommended working conditions | |
| Temperature range | 18 – 35 °C |
| Relative air humidity, non-condensing |
80 % |
| Operating System | Windows 10 (64 Bit) – from OS 12.14 Windows 11 |
| Capturing Software | min. OmniScan OS 12.12 64 bit |
