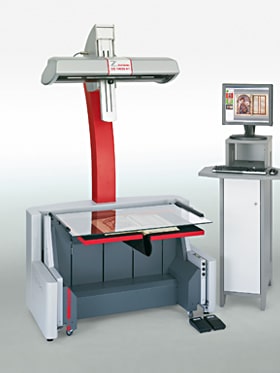

OS 14000 A1

The new dimension of book scanning for A1 formats.

Product advantages

  • Bookscanner with highest scan quality 600 ppi – 8 lp/mm
  • fastest scan speed
  • Perfect Book – 3D scan technology for perfect book curve correction
  • parallel scanning and saving process due to 64 bit technology and multi-threading
  • scanning in both directions
  • high productivity due to ROI-scan feature (limitation of scan area)
  • color reproduction is true to the original
  • no UV/IR radiation
  • no reflections with high gloss originals
  • ergonomic working with and without glass plate
Description book-/overhead scanner, universal stand unit with easy roll-in, roll-out interchange document table system
Size of originals 880 x 640 mm (> DIN A1, D-size)
Scanner tables choice of easy roll-in/outscanner tables, book cradle OT 180,
OT 180 H, book cradle OT 180 H-35, Kit 90° and book holder for ancient books, toplight table (optional with glass plate), newspaper table – see separate brochure OT
Scan head with highest contrast quality (8 lp/mm),
high precision scan lens, without distortion,
field of depth approx. 50 mm / 2 inches
Scan mode 36 bit color / output 24 bit color
12 bit gray / output 8 bit gray
1 bit b&w / output 1 bit b&w
Maximum resolution 600 ppi

Scan speed
(color, A1-size)
OS 14000 A1
 OS 14000 A1 LS
300 ppi 6.5 s 13 s
400 ppi 8.2 s 16 s
600 ppi 12.3 s 24 s
Scanner interface Dual Firewire
Perfect Book (optional) 3D scan technology for perfect book curve correction
Data display all standard formats, e.g. Tiff uncompressed, TIFF G4, JPEG, JP2, Multipage Tiff, PDF, BMP, PNG, PCX
User software software OS 12, 64 bit, multithreading for high productivity
Image enhancement software (optional) integrated color management, contrast improvement, image rotation, despeckle,
deskewing, cropping, masking, b&w scanning with dynamic threshold, etc.
Operating System Windows 7, 8.1 and 10 - alternatives on request
Power requirements 230 V, 50/60 Hz,
1.1 A, other voltages on request
Dimensions OS 14000 incl. OT 180
( w x d x h) 1360 mm x 1432 mm x 2310 mm
Accessories PC, monitor, workstation
