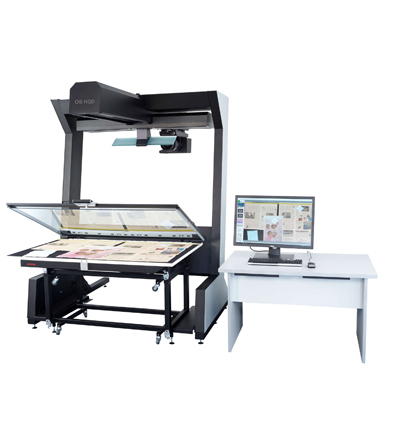

Overhead scanner for the digitisation of large formats in the highest quality.
The unique image quality of the OS HQ is based on the perfect interaction of particularly high-quality technical components.
The camera is characterised by a high dynamic range and the reproduction of even the finest gradations. The result: sharp, low-noise and high-contrast images that faithfully reproduce even the finest details, all in full resolution up to the maximum original width of the shooting table.
The special light guidance of the LED illumination system, with a constant angle, enables the OS HQ to reproduce even difficult originals without reflections or shadows. Reflections on glossy surfaces or shadows in the book fold are optically corrected. A CRI value of over 97 in conjunction with optimally matched camera and lighting components makes excellent colour reproduction possible.
The image quality of the OS HQ exceeds the requirements of common standards and guidelines, such as ISO 19264-1, Metamorfoze or FADGI, even for formats larger than A0.
The OS HQ sets the benchmark for high scanning productivity. The OS HQ achieves maximum efficiency in the scanning process through perfect interaction with the proven Zeutschel imaging systems for A1+ and/or A0+ formats. Functions such as self-opening glass plates, sliding, self-balancing book support plates and an automatic scanning system ensure maximum productivity.
The most important functions and product advantages:
| Camera sensor | RGB line sensor (3-channel, CMOS technology) |
| Resolution | 100 – 1000 ppi MeanMTF10 – at 600 ppi 10 lp/mm – with max. Zoom-in up to 14 lp/mm |
| Camera system | wear-free mechanical shutter, variable exposure time, electronically adjustable shutter; automatic white and black balance, variable depth of focus |
| Max. original size | Up to > DIN A0 (depending on the copyboard system used) |
| Max. book thickness | with book cradle OT 180 H A0 – 220 mm with book cradle OT 180 H 35 XL700 – 350 mm with book cradle OT 180 H 50 XL – 500 mm |
| Scan mode | 96 bit |
| Scanning speed | (from start to end of scanning process) 300 ppi – 7 sec. 600 ppi – 10 sec. |
| Scanner interface | Camera Link |
| Zoom (optional) | A0 – A1 |
| Electrical data/safety | |
| Voltage | 110 – 240 V |
| Frequency | 50 – 60 Hz |
| Max. consumption | 440 W |
| Safety inspections /authorizations | – Authorization in accordance with the IEC agreement (international authorization for the safety of IT products – includes EMC, electrical safety, device safety for CE, UL, ETL, CSA) – LEDs tested in accordance with: IEC 62471:2006 “Photobiological safety of lamps and lamp systems” |
| Dimensions | |
| Width | 1730 mm / 68.11″ |
| Depth | 3200 mm / 125.98″ |
| Height | 2305 mm / 90.75″ |
| Copy board systems | OT 180 H A0, AT 0, Vacuum Table A0, OT 180 H50 XL, OT 180 H 35 XL700, OT 180 H, OT 180, AT 1, OT 90, Vacuum Table A1 |
| Accessories for copy board systems | Kit 90°, book holder 110° – 140° |
| Recommended working conditions | |
| Temperature range | 19 – 35° C |
| Relative air humidity, non condensing | 80% |
| Operating System | Windows 10 (64 Bit) – from OS 12.14 Windows 11 |
| Scanning software | min. OmniScan OS 12.2 (64 bit) |
